LP3980
General Description
The LP3980 is designed for portable RF and wireless applications demanding performance and space requirements. The LP3980 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The LP3980 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3980 consumes less than 0.01µA in shutdown mode and has fast turn-on time less than 50µs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
Portable Media Players/MP3 players
Cellular and Smart mobile phone
LCD DSC Sensor
Wireless Card
Features
1.6V- 5.5V Input Voltage Range
Low Dropout : 240mV @ 300mA,3.3V
300mA Output Current
High PSRR: -76dB at 1KHz
＜1μA Standby Current When Shutdown
Ultra-Fast Response in Line/Load transient
Current Limiting
Thermal Shutdown Protection

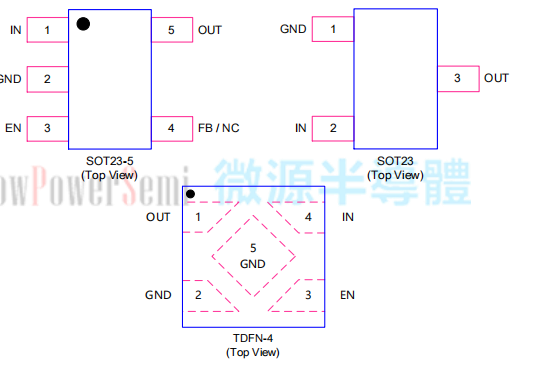

Available in SOT23-5/SOT23/TDFN-4 Package
