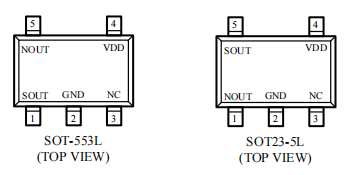

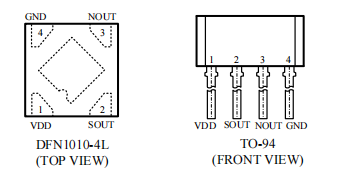

LN4917
■ General Description
LN4917 is with proprietary Hall effect plate and dual CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When north-pole of sufficient strength on chip or south-pole of sufficient strength under chip, the LN4917 will turn on the NOUT output. When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4917 will turn on the SOUT output. While the magnetic flux density (B) is larger than operate point BOP(s), the SOUT will be turned on (low), the output is held until B is lower than release point BRP(s), then turned off (high). While the magnetic flux density (B) is larger than operate point BOP (n), the NOUT will be turned on (low), the output is held until B is lower than release point BRP (n), then turned off (high).

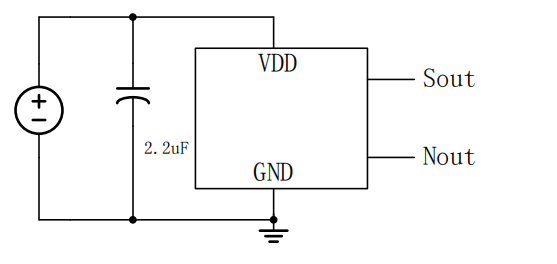

■ Application
Mobile phones and Portable electronic devices
Notebook
■ Features

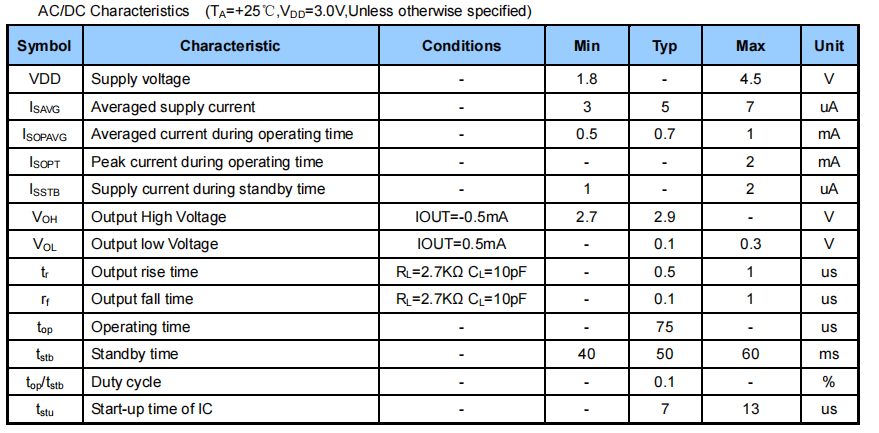

1.8V to 4.5V battery operation
Operation with North or South Pole
Chopper stabilized
Superior temperature stability
Extremely Low Switch-Point Drift
Insensitive to Physical Stress
Good RF noise immunity
ESD HBM bigger than 4kV
Lead Free Finish/RoHS Compliant
