LN4916
MicroPower , Ultra-Sensitive CMOS Hall IC
LN4916 is with proprietary Hall effect plate and single
CMOS output driver, mainly designed for battery–powered,
hand-held equipment (such as Cellular and Cordless
Phone, PDA). When south-pole of sufficient strength on
chip or north-pole of sufficient strength under chip, the
LN4916 will turn on the SOUT output.
While the magnetic flux density (B) is larger than operate
point BOP(s), the SOUT will be turned on (low), the output
is held until B is lower than release point BRP(s), then
turned off (high).
■ General Description
LN4916 is with proprietary Hall effect plate and single CMOS output driver, mainly designed for battery–powered, hand-held equipment (such as Cellular and Cordless Phone, PDA). When south-pole of sufficient strength on chip or north-pole of sufficient strength under chip, the LN4916 will turn on the SOUT output. While the magnetic flux density (B) is larger than operate point BOP(s), the SOUT will be turned on (low), the output is held until B is lower than release point BRP(s), then turned off (high).
■ Package
SOT-553

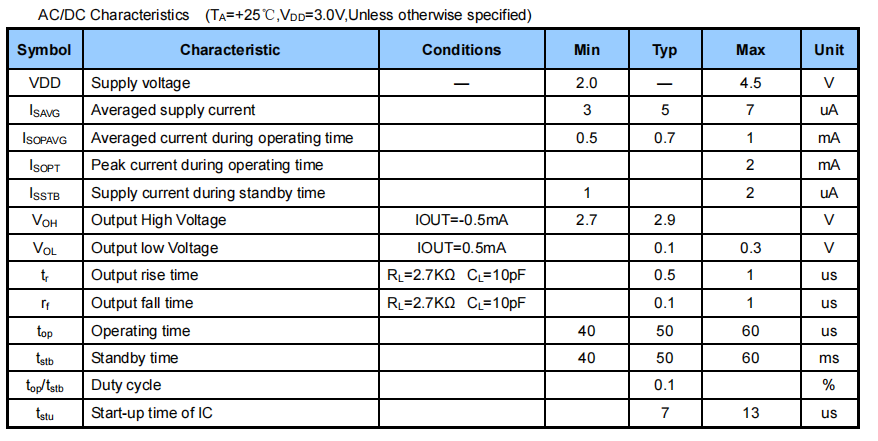

■ Features
2.0V to 4.5V battery operation
Operation with South Pole
Chopper stabilized
Superior temperature stability
Extremely Low Switch-Point Drift
Insensitive to Physical Stress
Good RF noise immunity
ESD HBM bigger than 4kV
Lead Free Finish/RoHS Compliant
■ Application
Mobile phones and Portable electronic devices
Notebook
